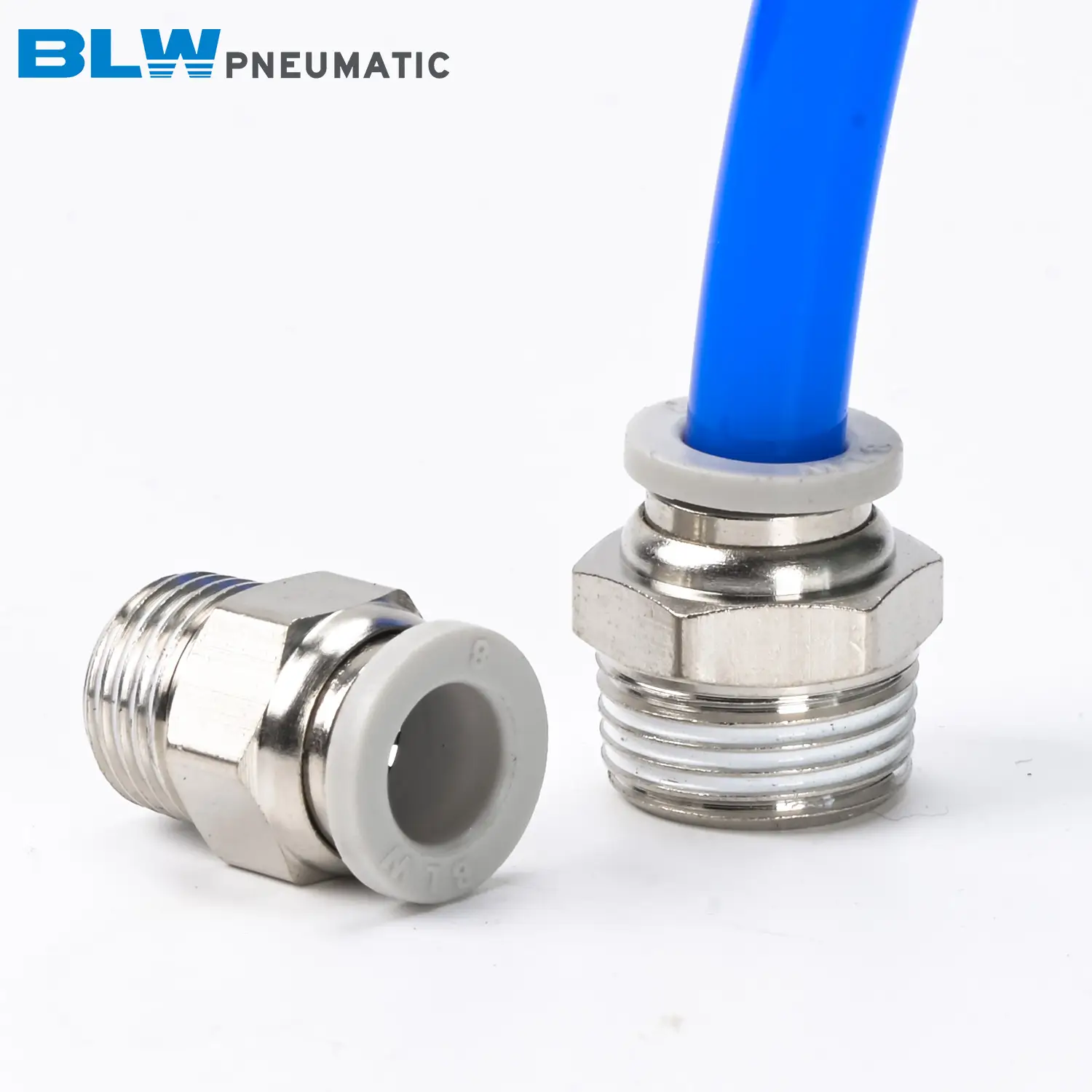

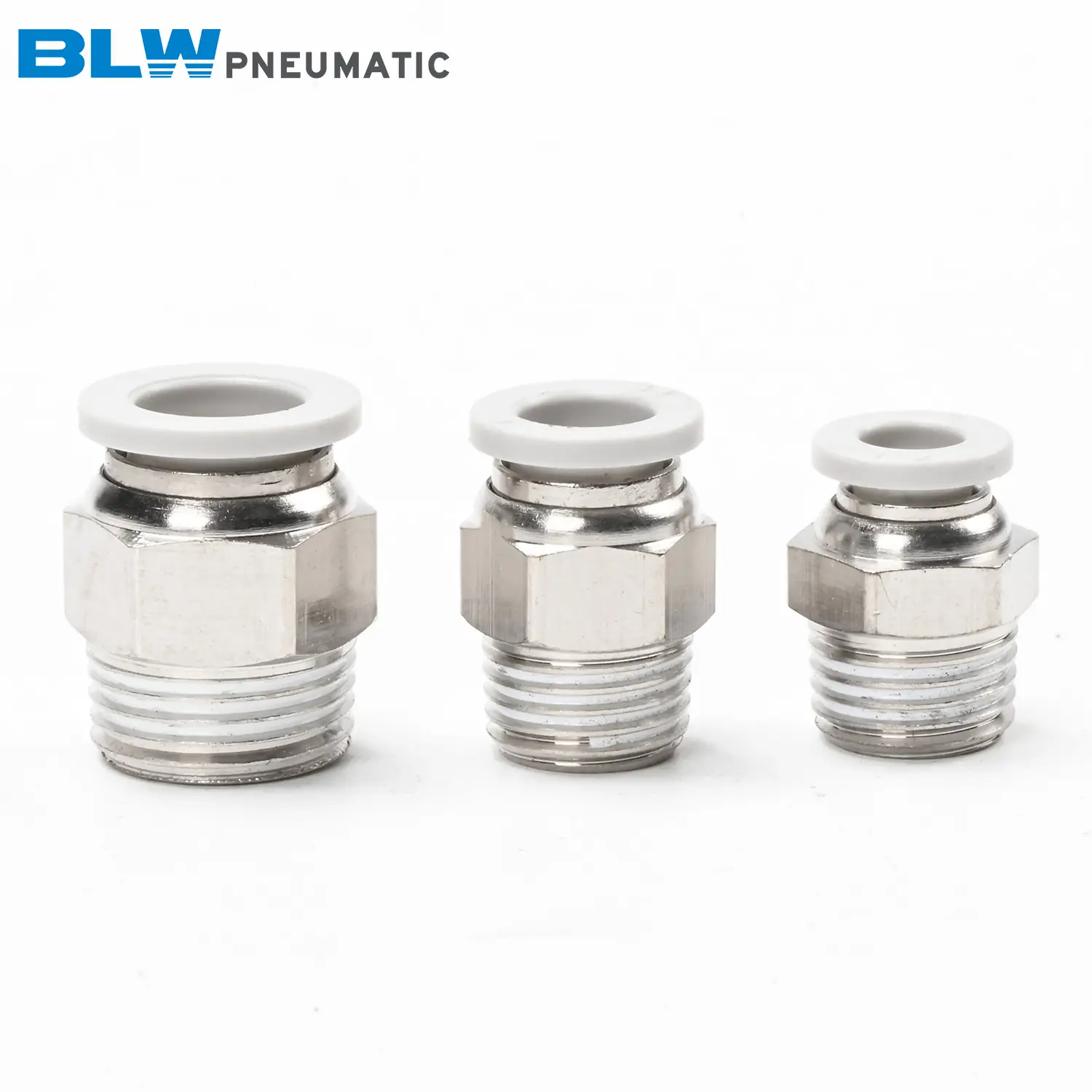

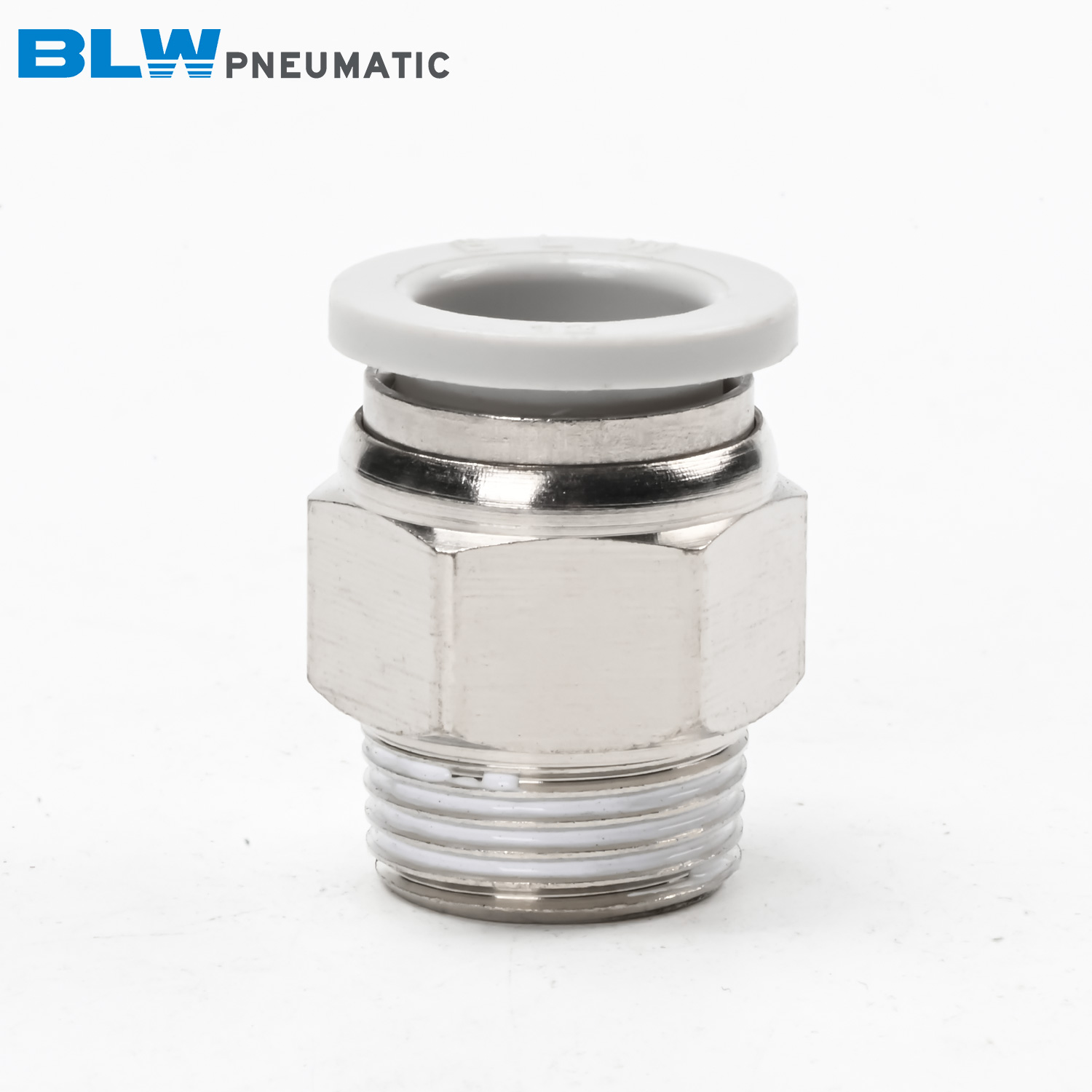

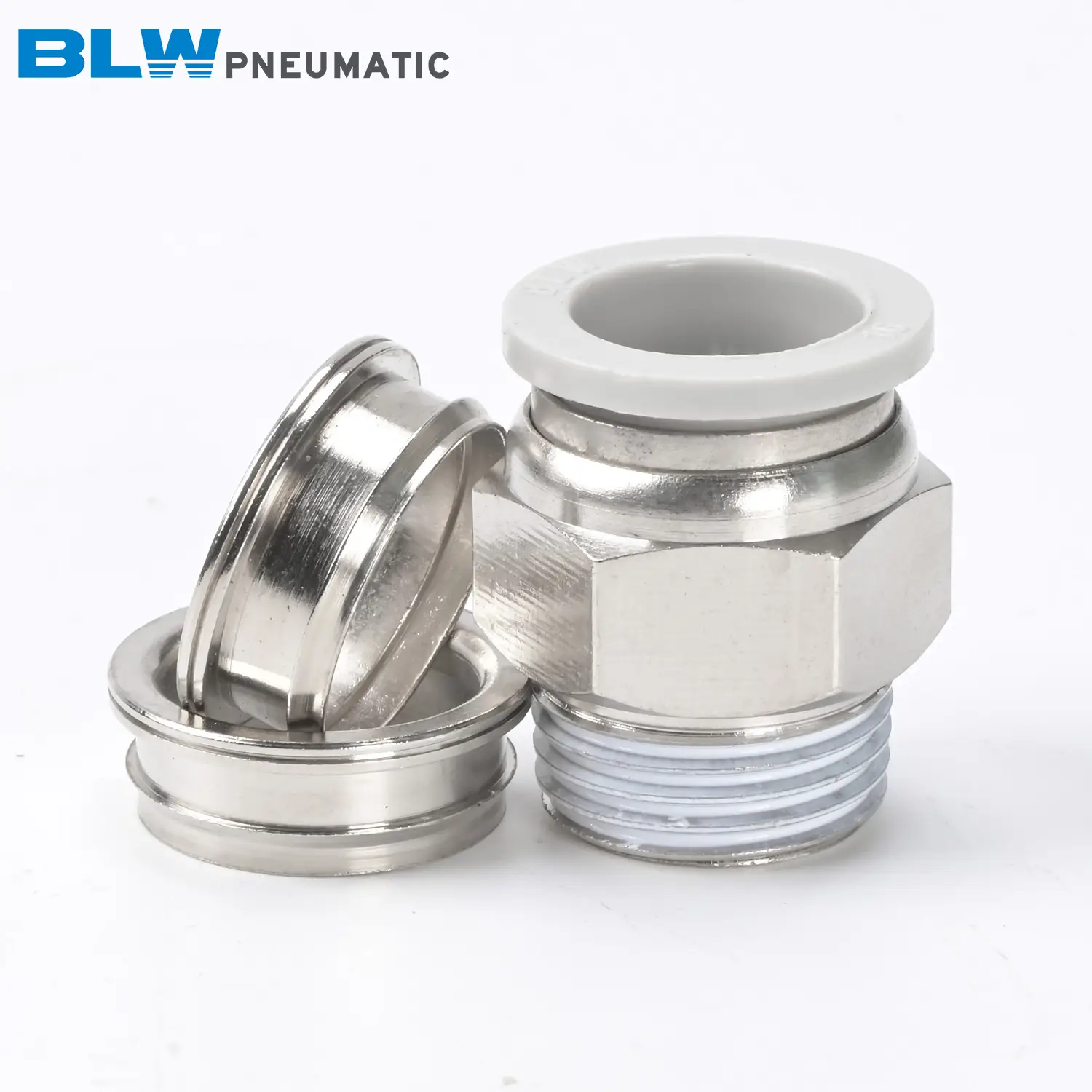

【PC Pneumatic Fittings commonly used for linking nylon and polyurethane tubing in pneumatic circuits.When the tube is inserted,it is held in place by the elastic ring in the coupling and sealed by an o-ring.When unloadingthe tube,you only need to press down the elastic snap ring to pull out the tube easily.Thereare many kinds of quick-connect fittings and the size series are very complete, which is one of the most widely used hose fittings.
Fluid Type | Air,Water |
Body Material | PBT(Polybutylece terephthalate) |
Cap Material | POM(Polyoxymethylene) |
Sleeve Material | POM(Polyoxymethylene) |
Circlip | 201 Stainless |
Seal Material | NBR(Nitrile Butadiene Rubber) |
Operating Pressure | 0-10.2kgf/cm2 (0-1.0mpa) |
Negative Pressure | -750mmHg(10Torr) |
Operating Temperature Range | -20°C-60°C |
Use Tube | PU,PA,PE, Soft tube |
