Working medium | Air |
Filter capacity | 40μm or 5μm |
Adjustable pressure range | 0.05-0.85MPa(7-121Psi) |
Max adjustable pressure | 0.9MPa(135PSi) |
Guarantee pressure resistance | 1.5MPa(213Psi) |
Working temperature | 5~60℃ |
Recommended lubrication oil | ISO VG32 |

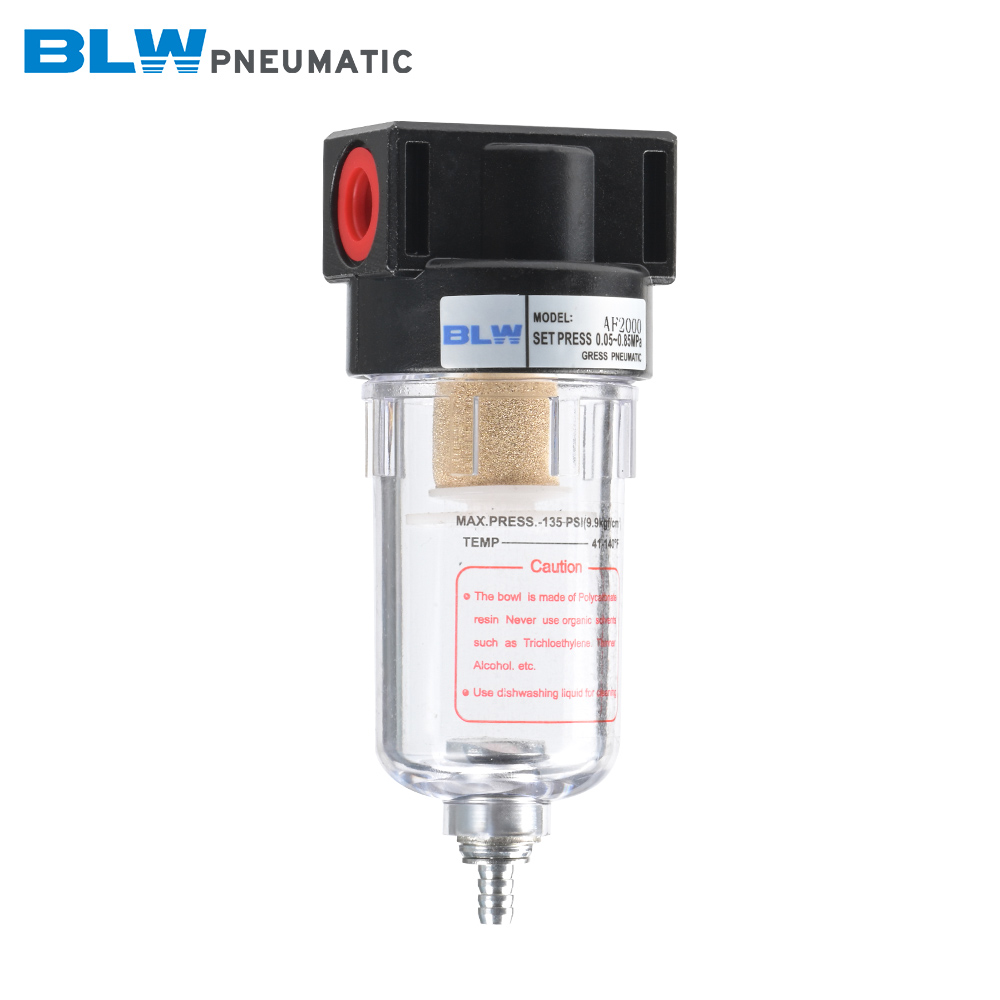

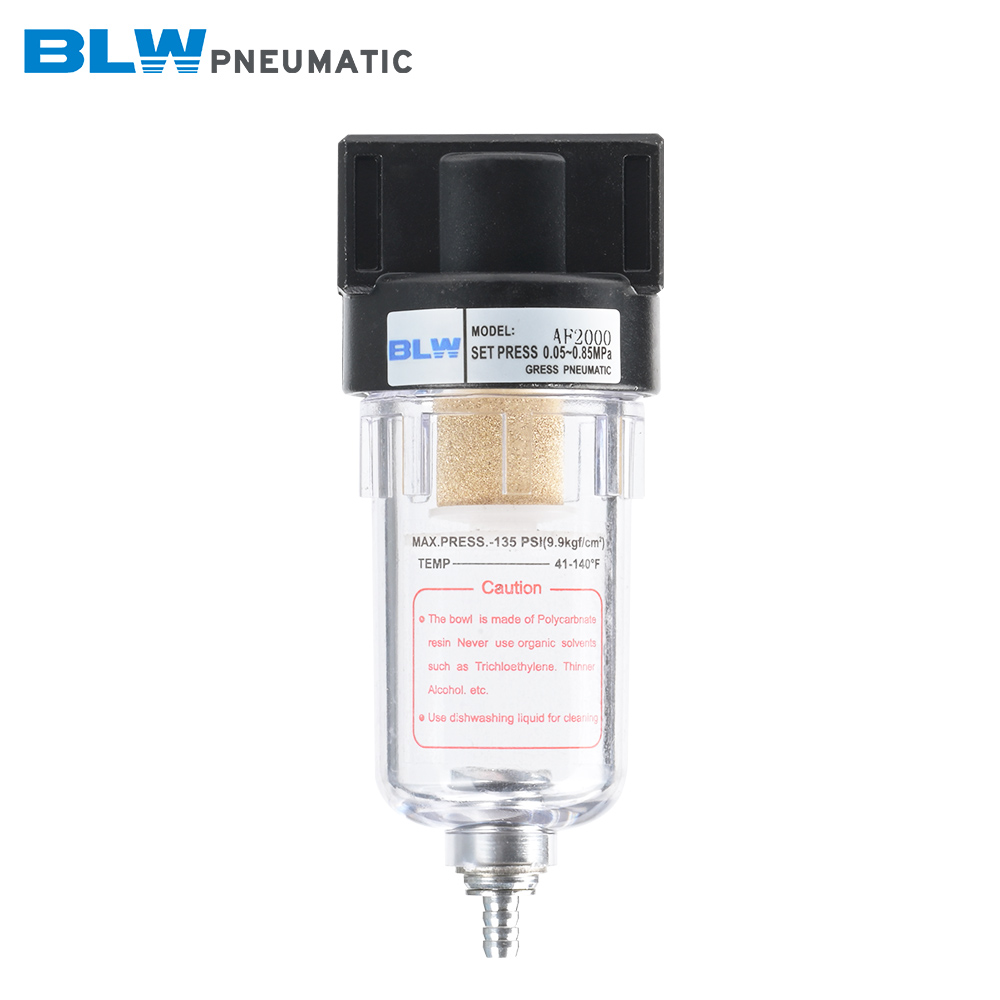

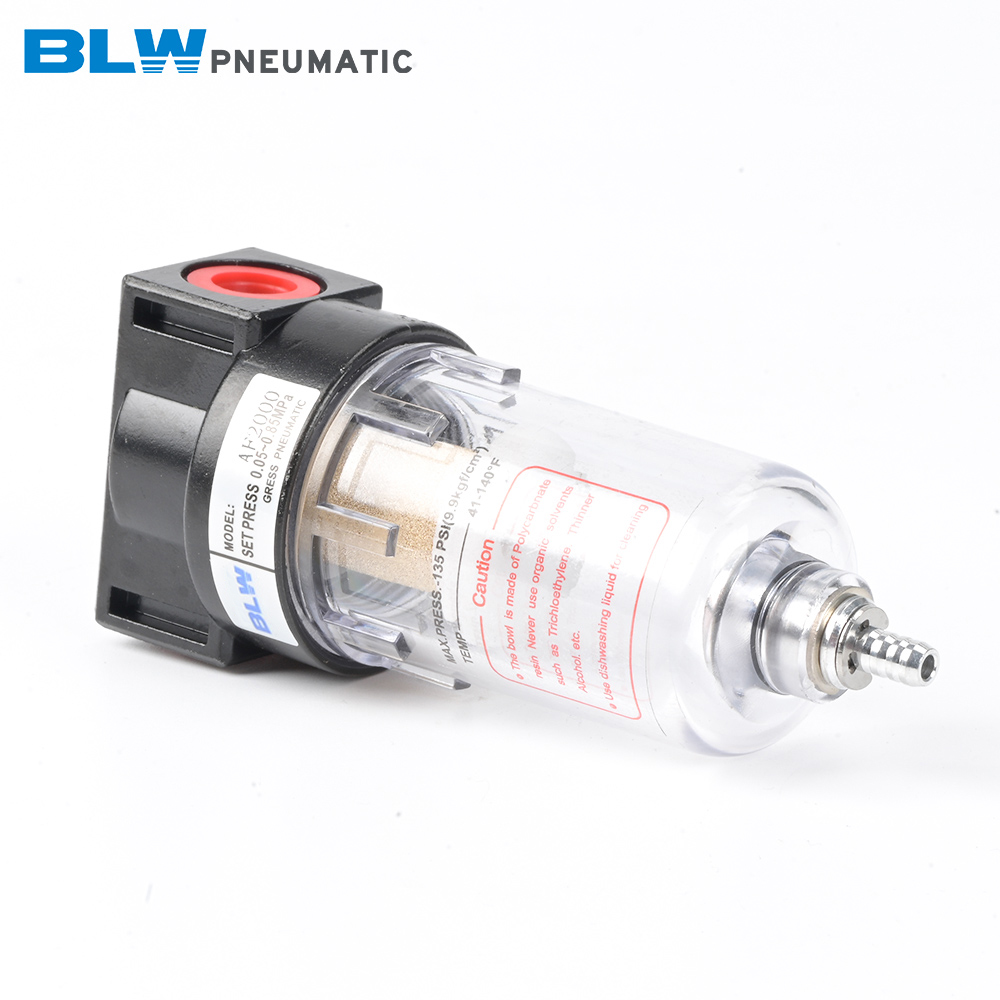

The AF2000 Air Filter is a compact and high-performance pneumatic component designed for industrial compressed air purification. As part of air preparation systems, it effectively removes contaminants such as dust, rust, and moisture from compressed air streams, ensuring optimal performance of downstream pneumatic equipment.
Key Features:
Filtration Precision: Offers nominal filtration ratings of 5 μm, 25 μm, or 50 μm (selectable based on application requirements).
Robust Construction: Features an aluminum die-cast body for durability and a polycarbonate bowl for visual monitoring of contaminants. The filter element is made of brass, ensuring corrosion resistance.
Operating Parameters:
Max. Pressure: 1.0 MPa (145 psi) with a proof pressure tolerance of 1.5 MPa (217 psi).
Temperature Range: 5–60°C, suitable for standard industrial environments.

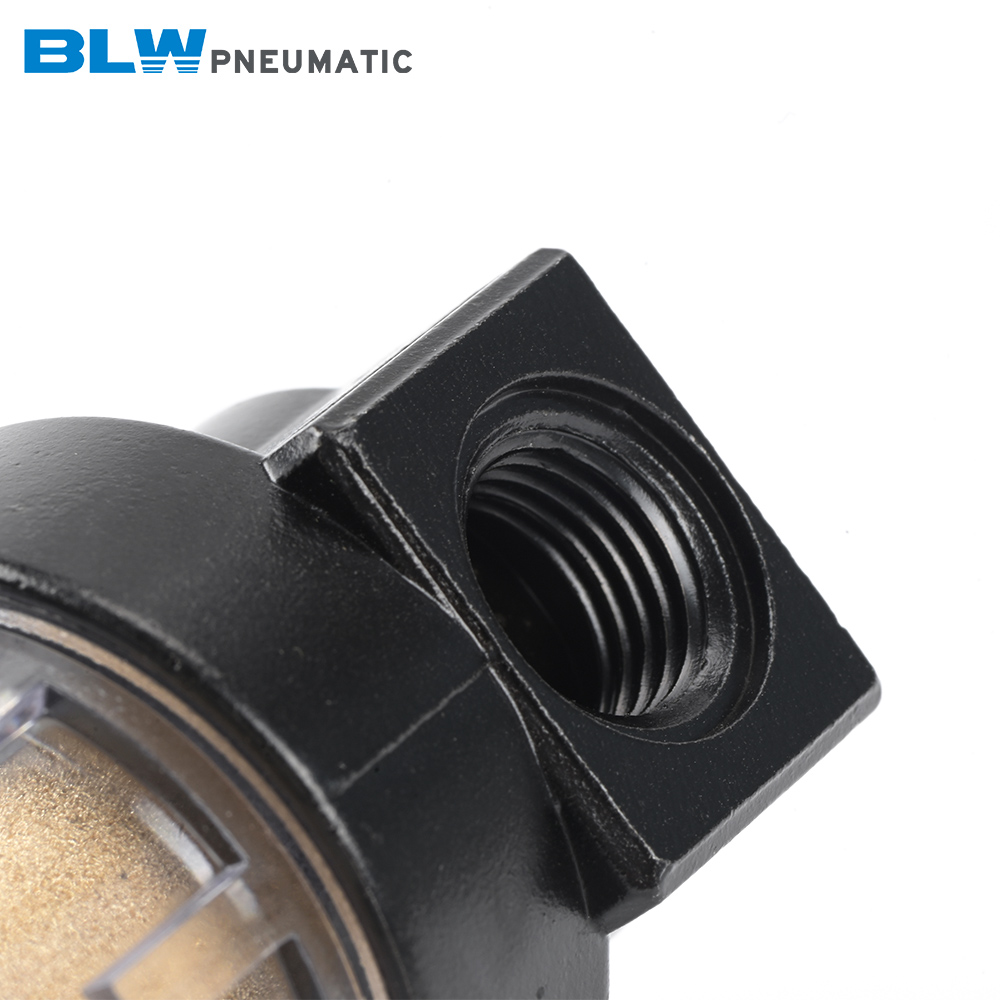

Port Size: G1/8 or G1/4 (standard options), compatible with most pneumatic systems.
Flow Capacity: Provides a rated flow of 750 L/min (AF2000-01) or 1500 L/min (AF2000-02), balancing efficiency and compact design.
Additional Components:

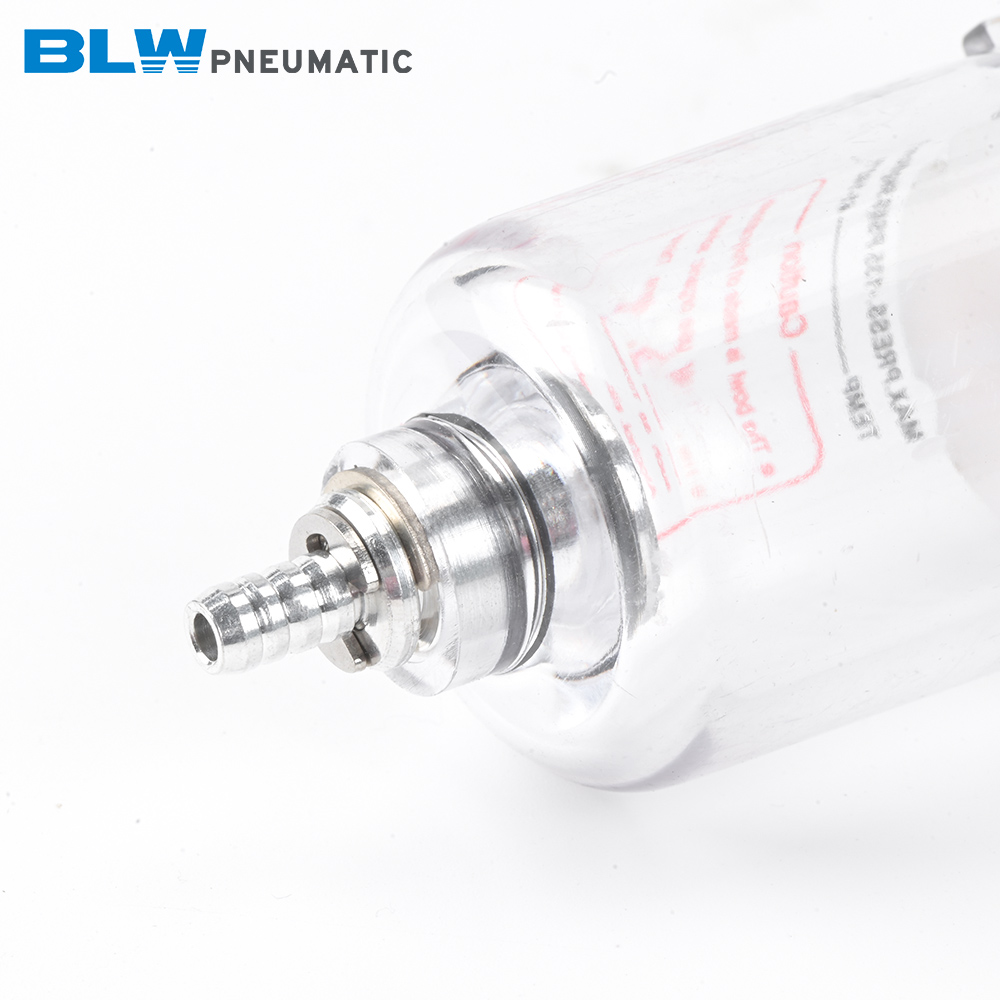

Includes a water cup (capacity: 60 CC) for moisture separation.
Optional bowl guard for enhanced safety in high-vibration environments.
Applications: Widely used in industrial automation, machinery manufacturing, and pneumatic control systems. Its modular design allows integration with regulators and lubrica
