Working medium | Air |
Filter capacity | 40μm or 5μm |
Adjustable pressure range | 0.05-0.85MPa(7-121Psi) |
Max adjustable pressure | 0.9MPa(135PSi) |
Guarantee pressure resistance | 1.5MPa(213Psi) |
Working temperature | 5~60℃ |
Recommended lubrication oil | ISO VG32 |

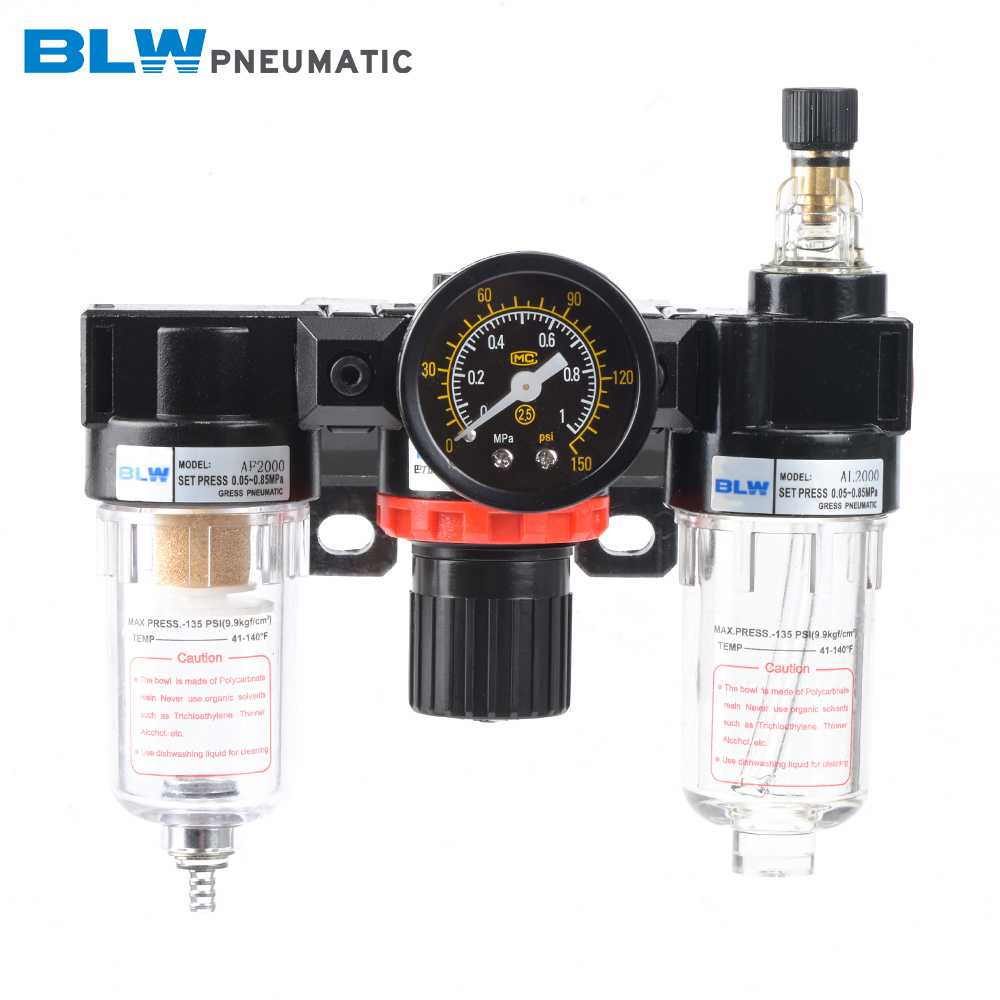

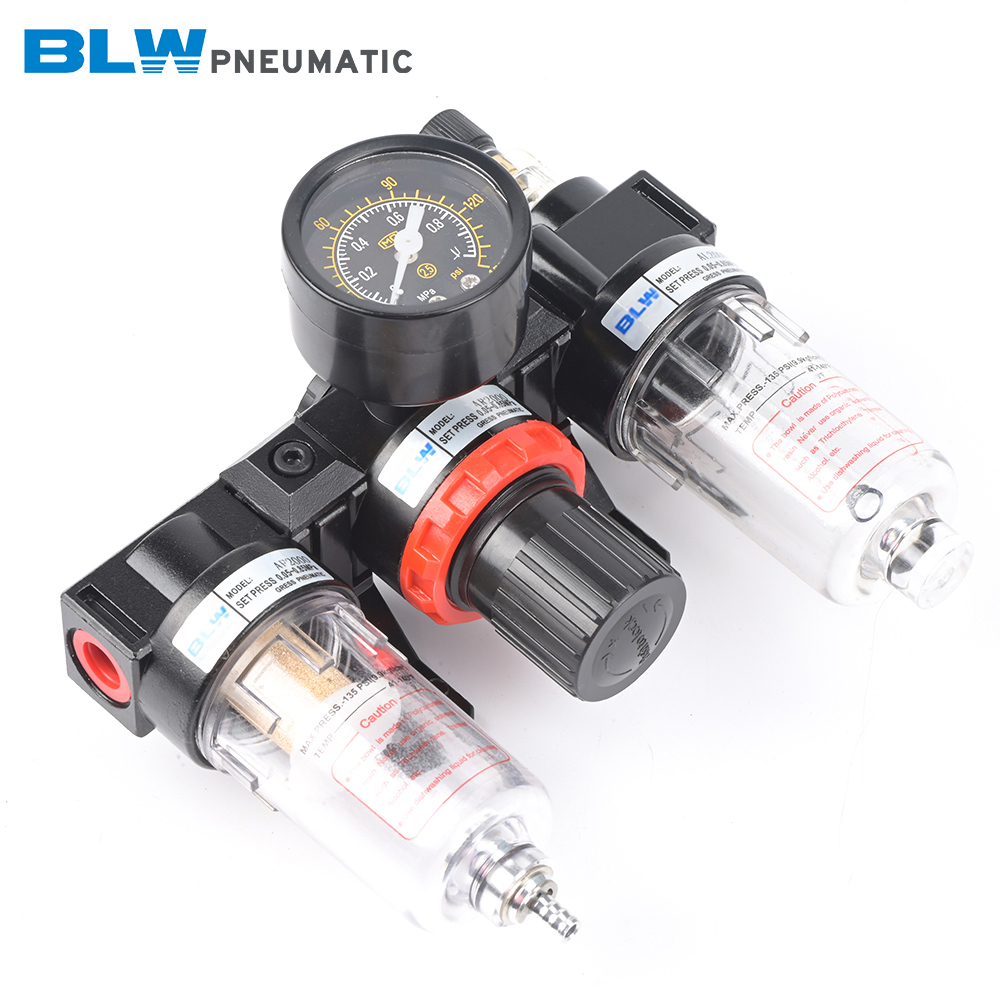

The AC2000 Air Treatment Unit, also known as a Triple Component (F.R.L), is a modular pneumatic system integrating three essential functions for compressed air preparation: Filtration, Pressure Regulation, and Lubrication
Designed for industrial automation applications, it combines:
-

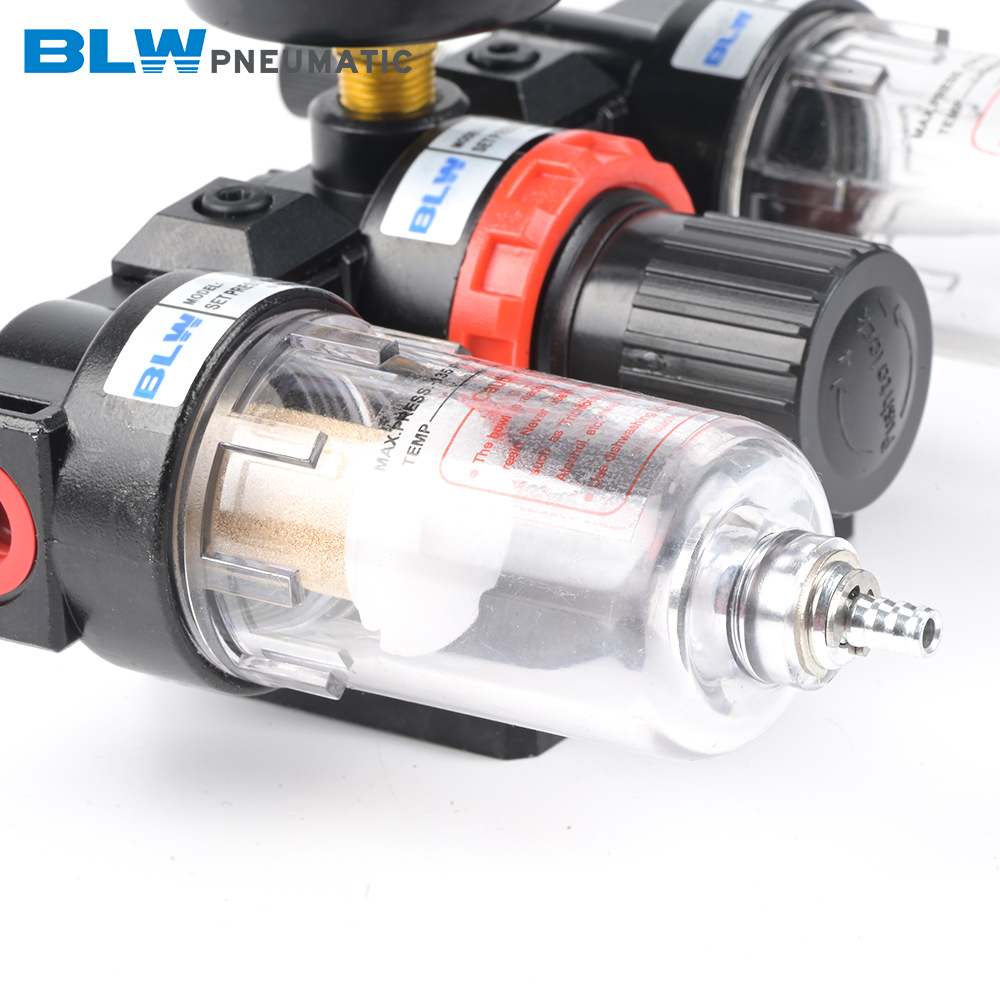

Air Filter (AF2000): Removes contaminants (dust, rust, moisture) with a filtration precision of 5–40 μm and a water cup capacity of 60 CC

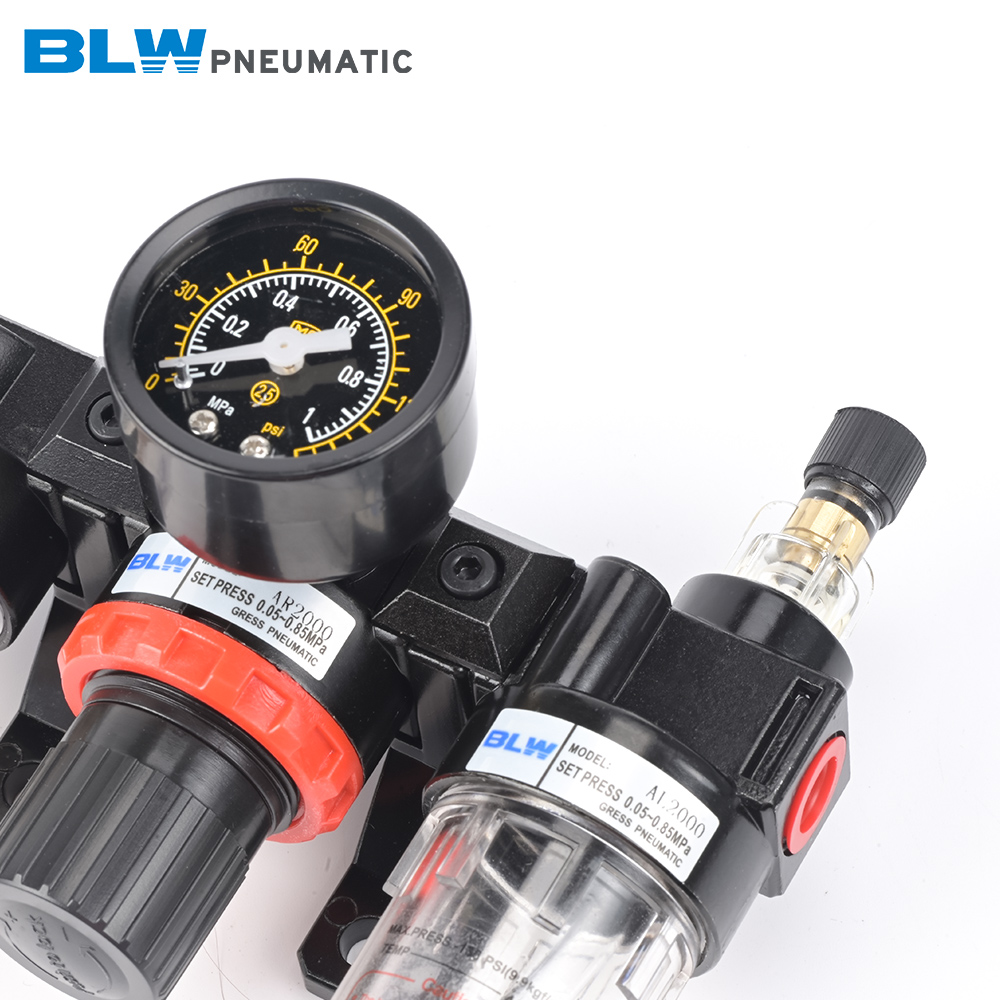

- Pressure Regulator (AR2000): Adjusts air pressure within 0.05–0.85 MPa using a self-locking mechanism to prevent unintended pressure fluctuations

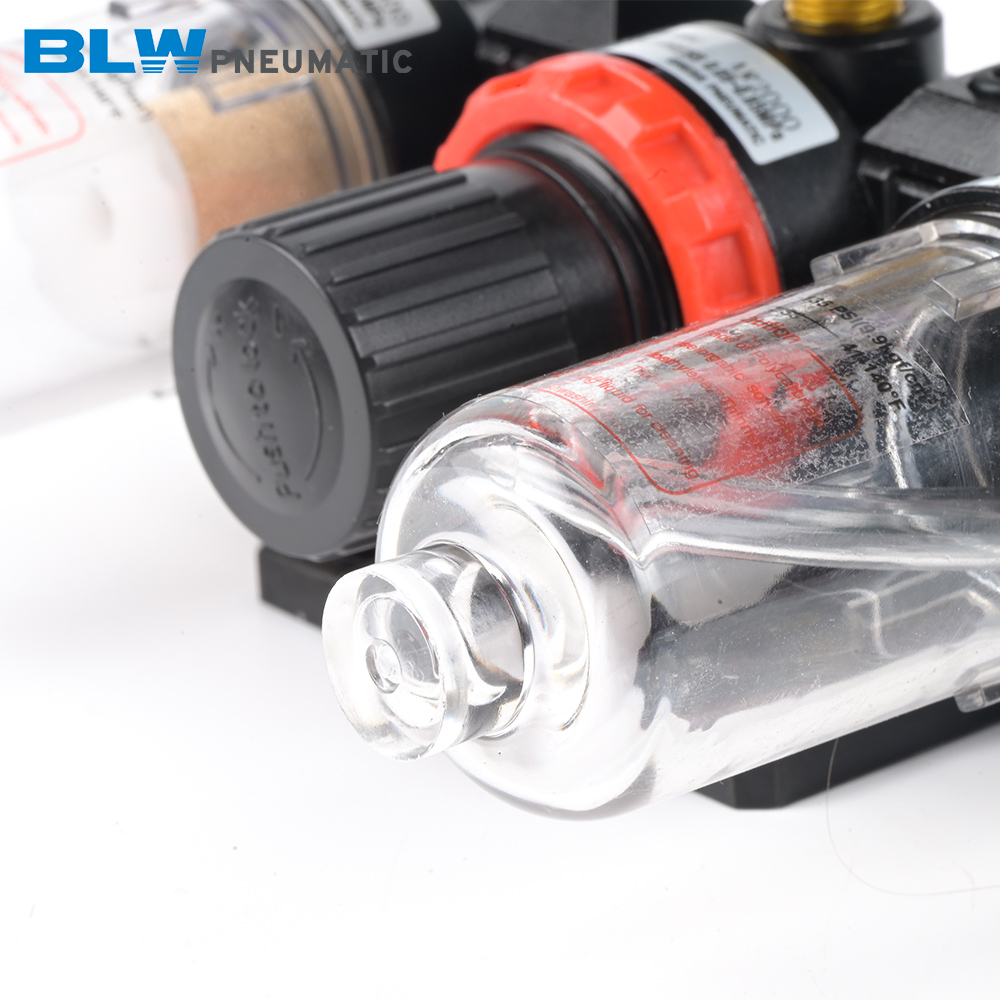

- Lubricator (AL2000): Atomizes ISO VG32-grade oil for pneumatic component lubrication, featuring a transparent oil-feed window and a 90 CC oil cup
Key specifications include:
- Port Size: G1/4 (1/4″) for standard industrial piping compatibility
- Max Operating Pressure: 1.0 MPa with a burst pressure tolerance of 1.5 MPa
- Temperature Range: 0–60°C, suitable for most industrial environments
- Modular Design: Allows individual replacement or reconfiguration of components (e.g., combining filters and regulators without lubricators)
Widely used in machinery manufacturing, automotive assembly, and pneumatic control systems, the AC2000 ensures stable air supply quality while minimizing wear on downstream components like cylinders and valves
Its compact, lightweight aluminum alloy construction and optional automatic drainage (e.g., float-type for AC3000+ models) enhance operational efficiency
