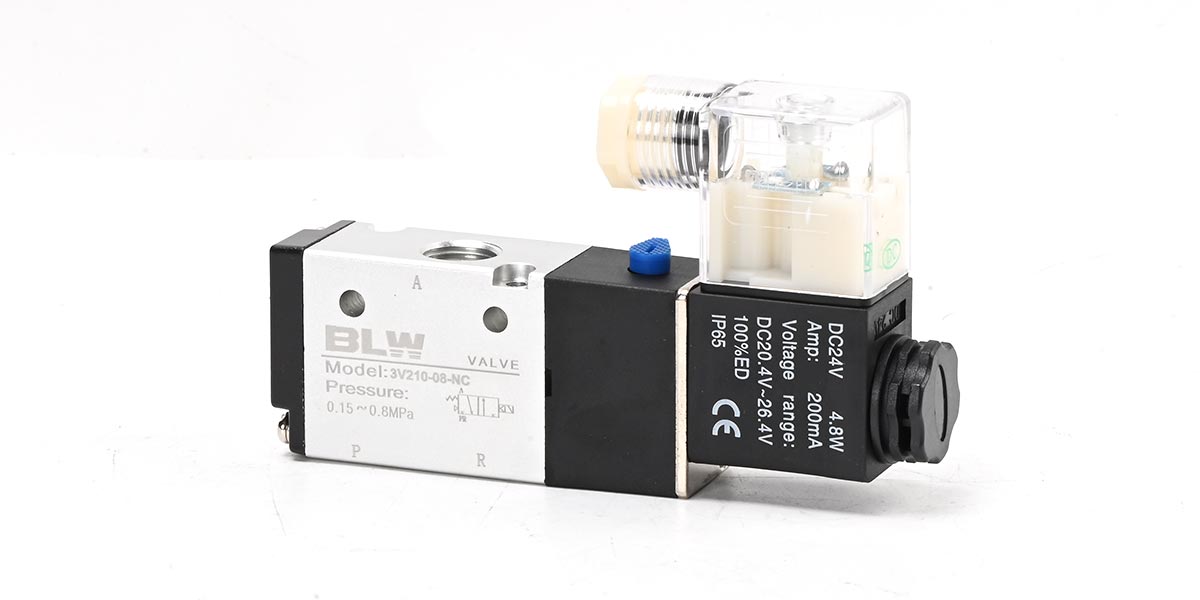

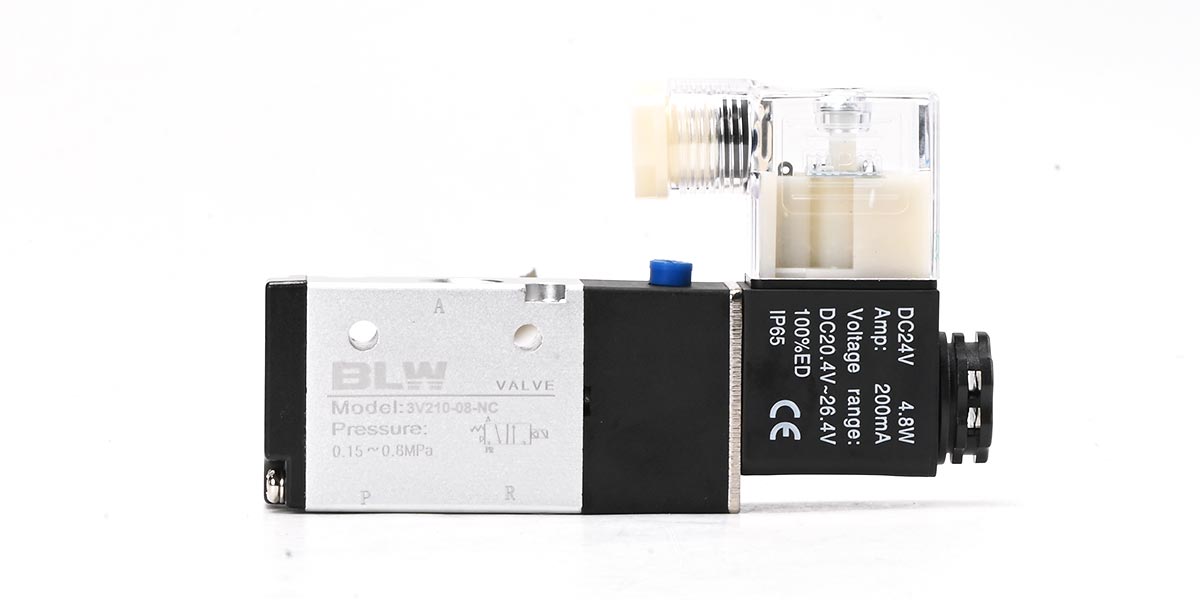

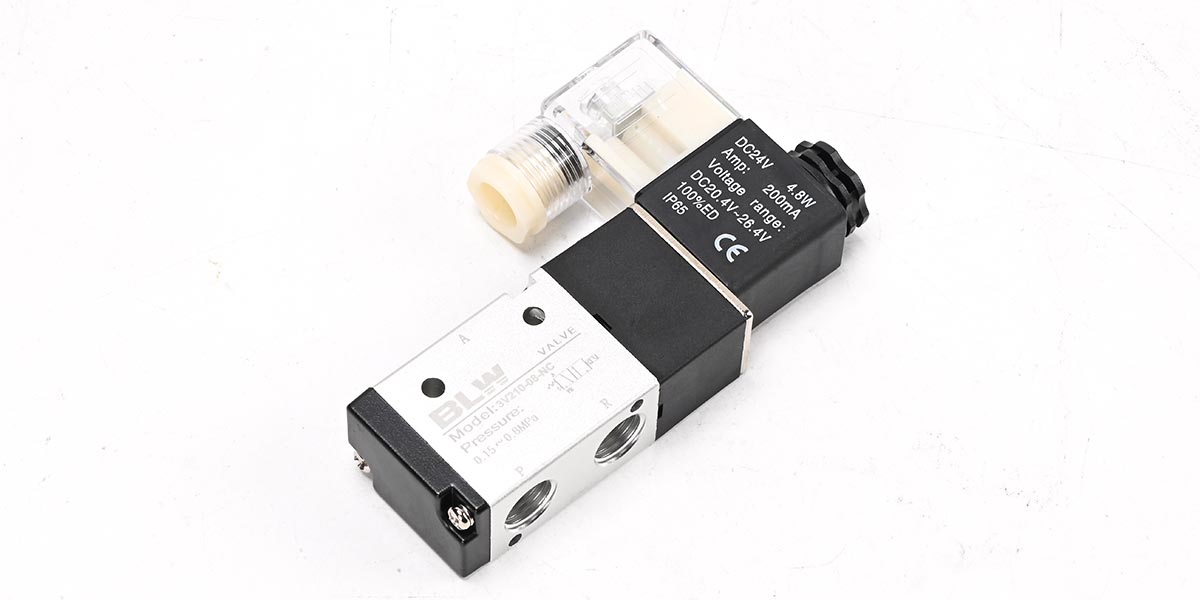

The 3V series solenoid valve is a commonly used two position three-way valve in pneumatic control systems, with the following core functional characteristics:

1、 Structural characteristics

Pilot mode: Supports both internal and external pilot modes to adapt to different working conditions

Sliding column structure: adopting sliding column design, with good sealing and sensitive response, ensuring fast reversing

Material and process: The inner hole of the valve body is processed by special technology, with low friction resistance, low starting air pressure, and extended service life

2、 Functional advantages

Memory function: The dual head solenoid valve has the ability to maintain the valve position after power failure (note the type of power supply)

No lubrication required: Designed to reduce maintenance costs without the need for additional oil lubrication

Manual device: equipped with manual operation function, convenient for installation, debugging and emergency operation

3、 Electrical and Performance Parameters

Voltage selection: Provides multiple standard voltages (such as AC220V, DC24V, etc.) with strong compatibility

High frequency response: The highest operating frequency can reach 5 times per second, suitable for high-speed assembly line scenarios

Power consumption and excitation time: Typical power consumption is 6VA for AC and 4.8W for DC; excitation time ≤ 0.05 seconds

4、 Installation and Expansion

Integrated valve group: supports combination with base to save installation space

Environmental adaptability: The working temperature range is -20 ℃ to 70 ℃, and attention should be paid to dust prevention and low temperature protection
