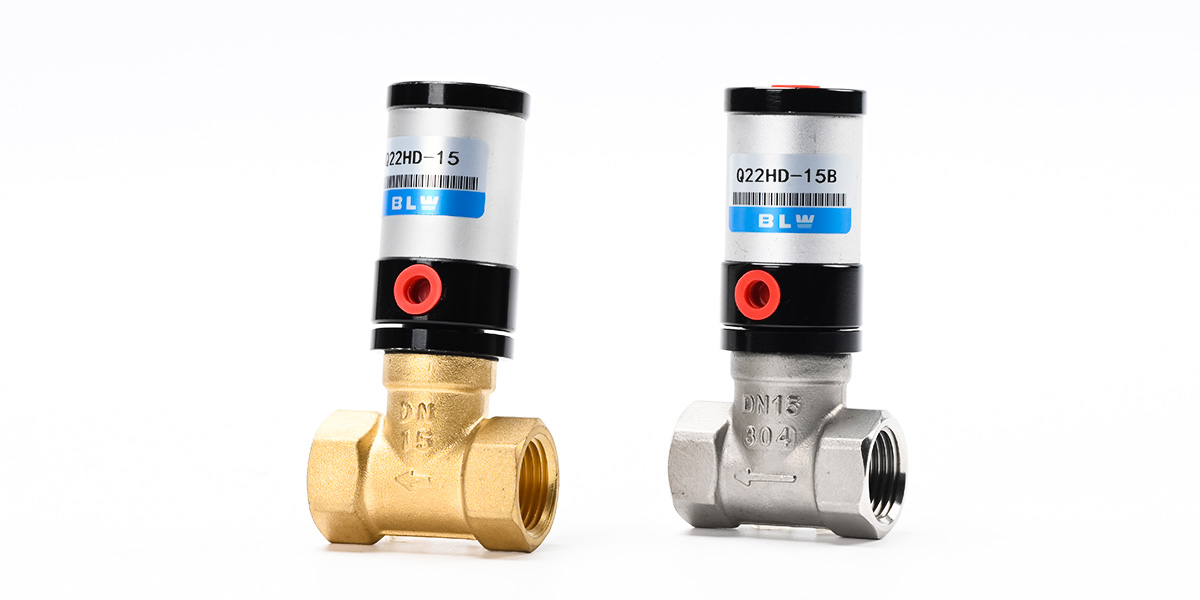

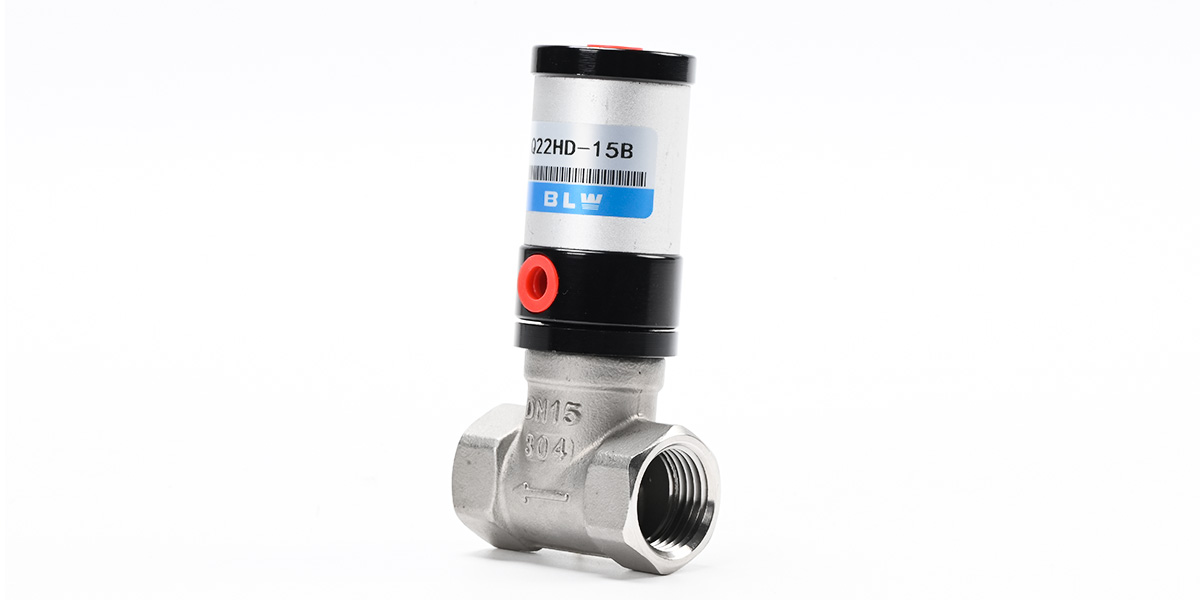

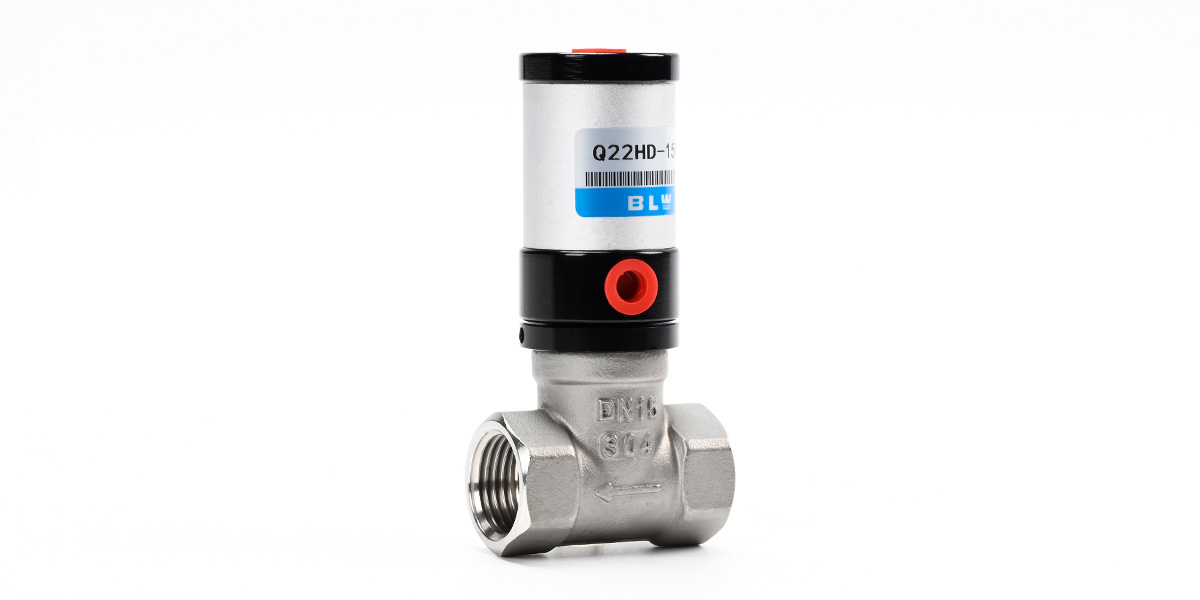

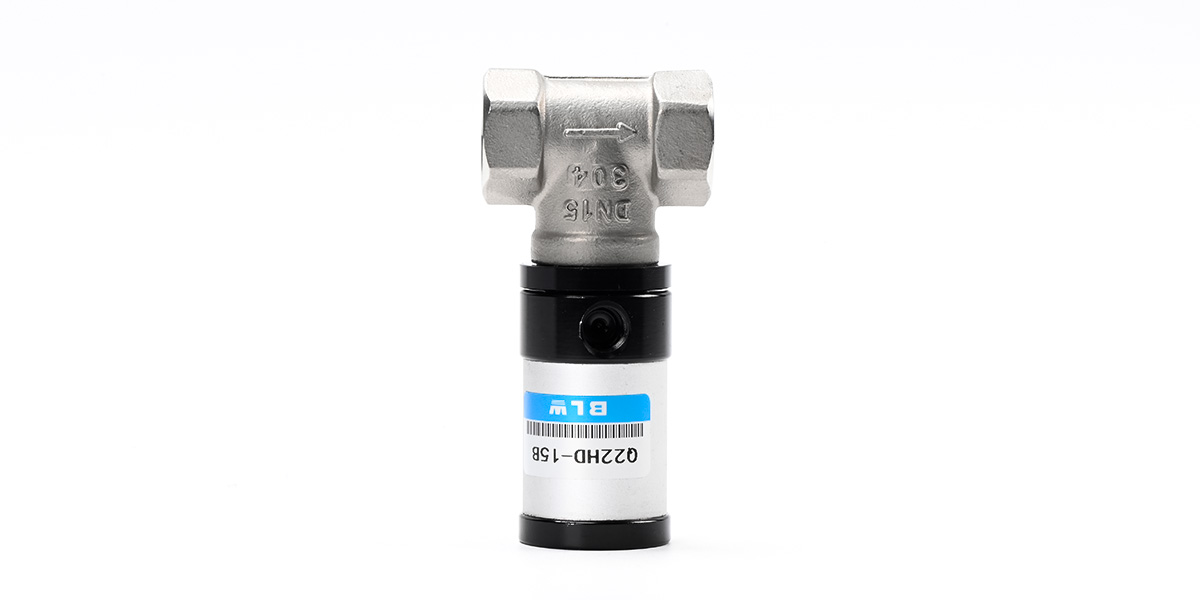

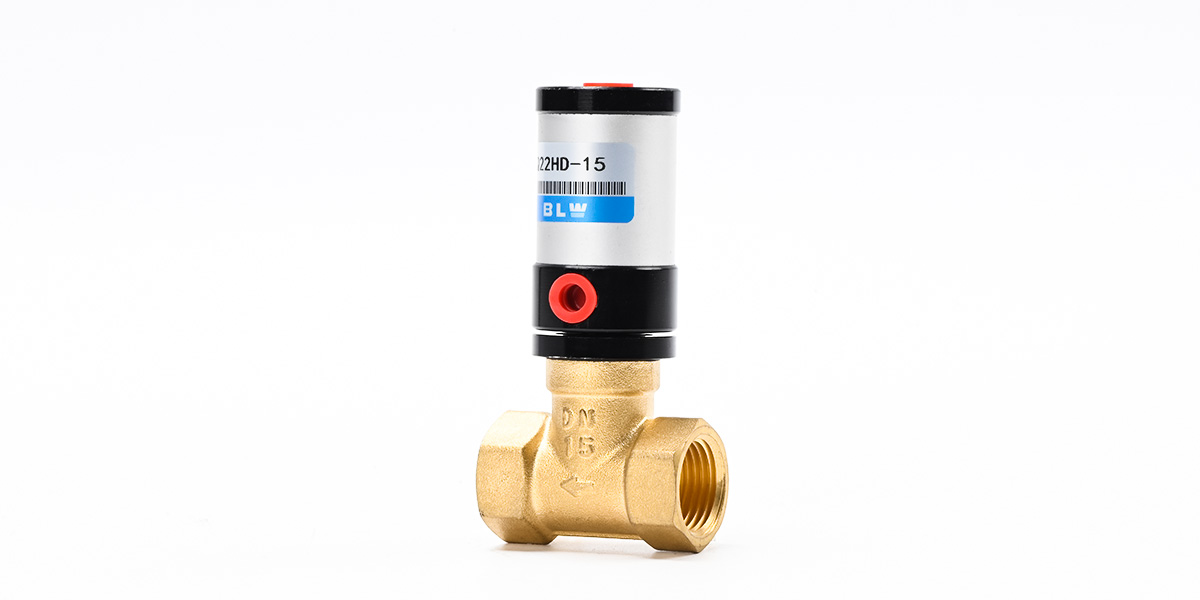

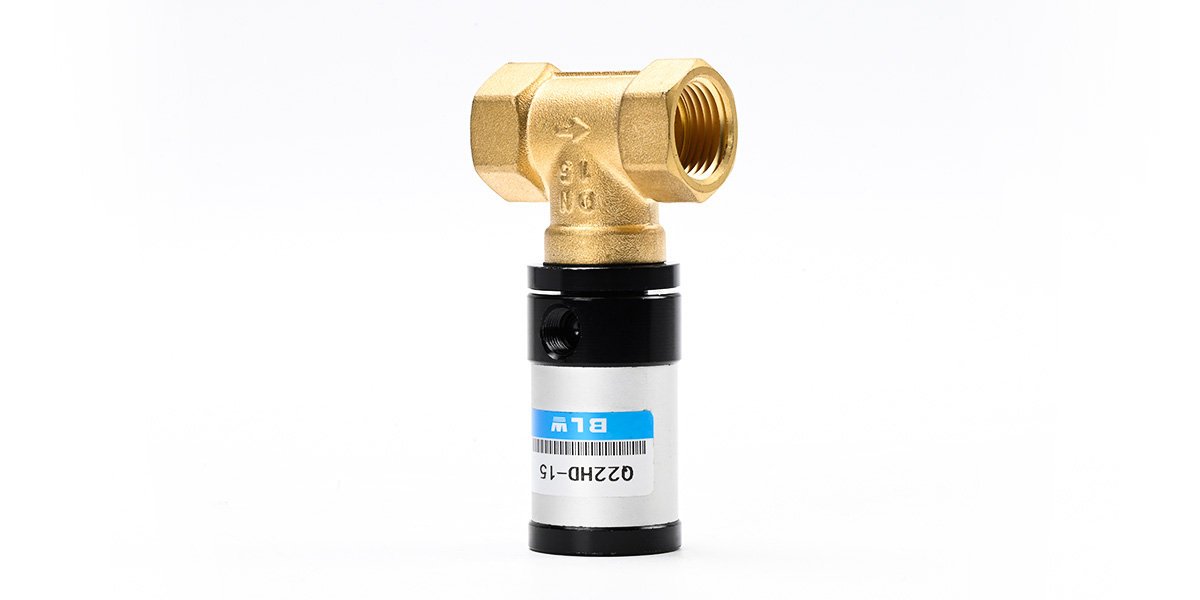

Q22HD pneumatic control valve

Q22HD

A pneumatic valve is a type of control valve that uses compressed air as power and controls the fluid through the pneumatic path. The pneumatic valve is mainly composed of the valve body, piston, spring, slide valve, air storage chamber and other parts. Its working principle is based on compressed air entering the air storage chamber and pushing the piston to change the on-off state of the valve.
  • Function

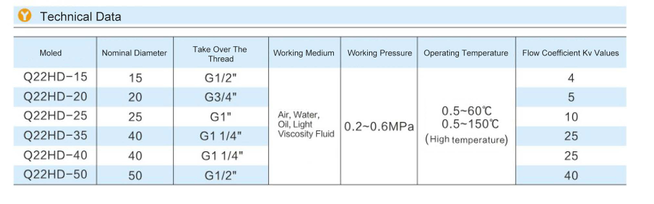

  • Parameters

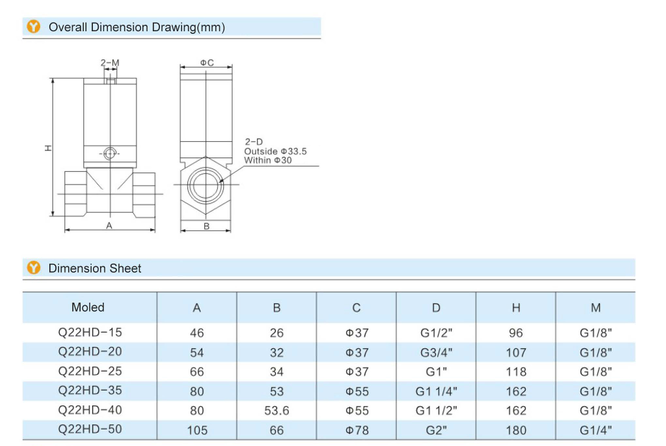

  • Size
  • This valve features low starting pressure, high closing sensitivity, excellent sealing performance and arbitrary inlet direction. There are various structures such as cut-off, plate type, single and double acting control, etc. It is now widely applied in mechanical equipment such as food, medicine, industry, washing, petrochemical, metallurgy, spraying, and vehicles.
