Product Center

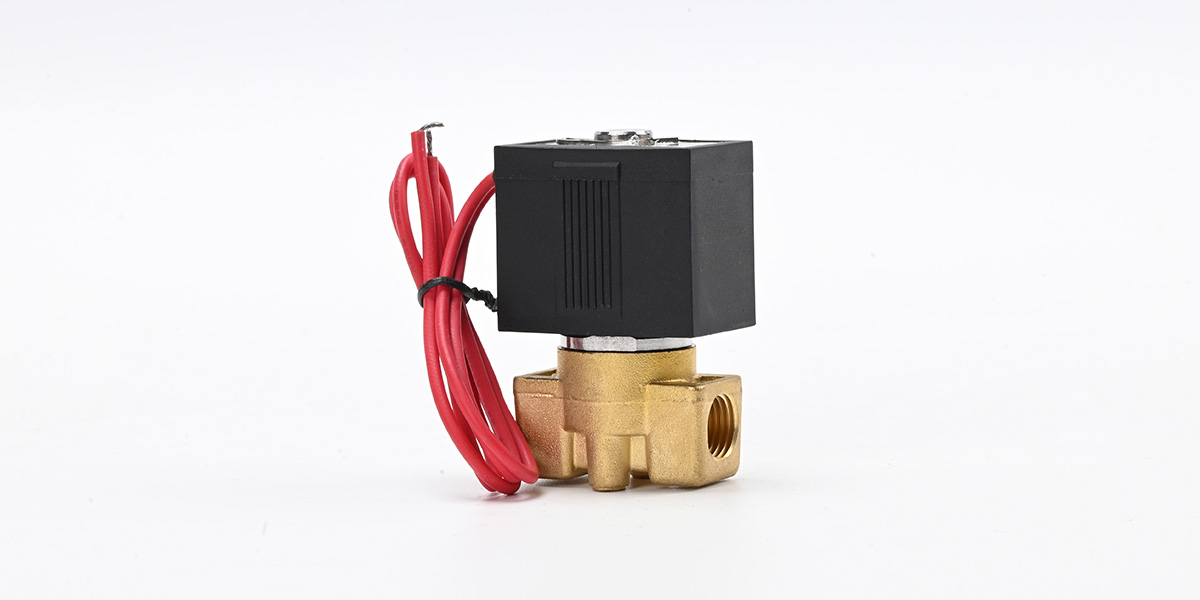

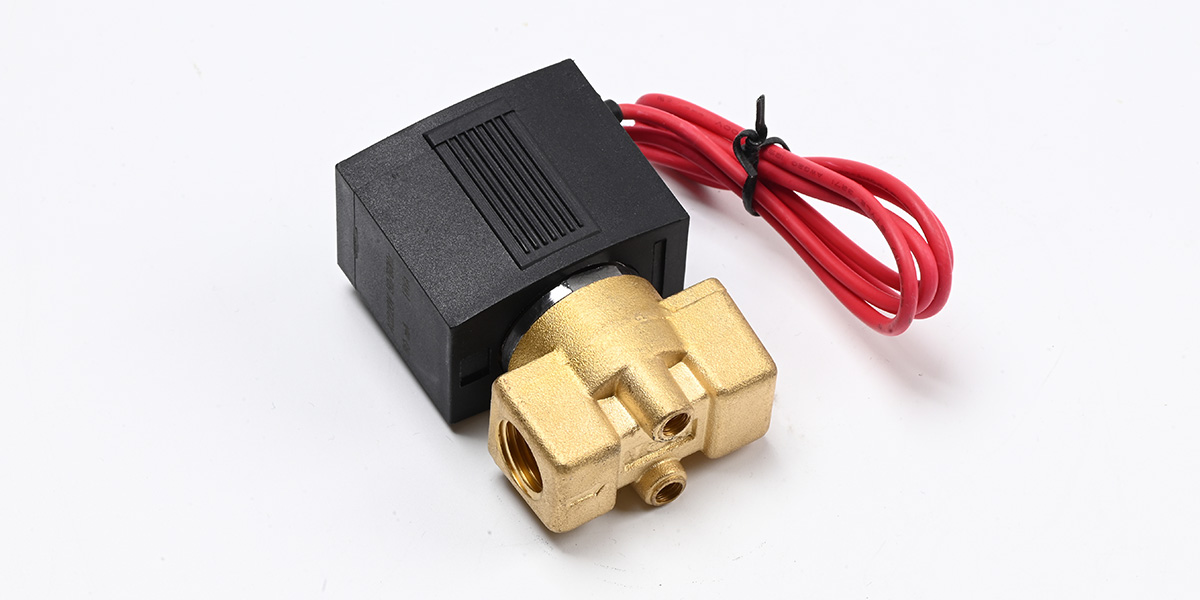

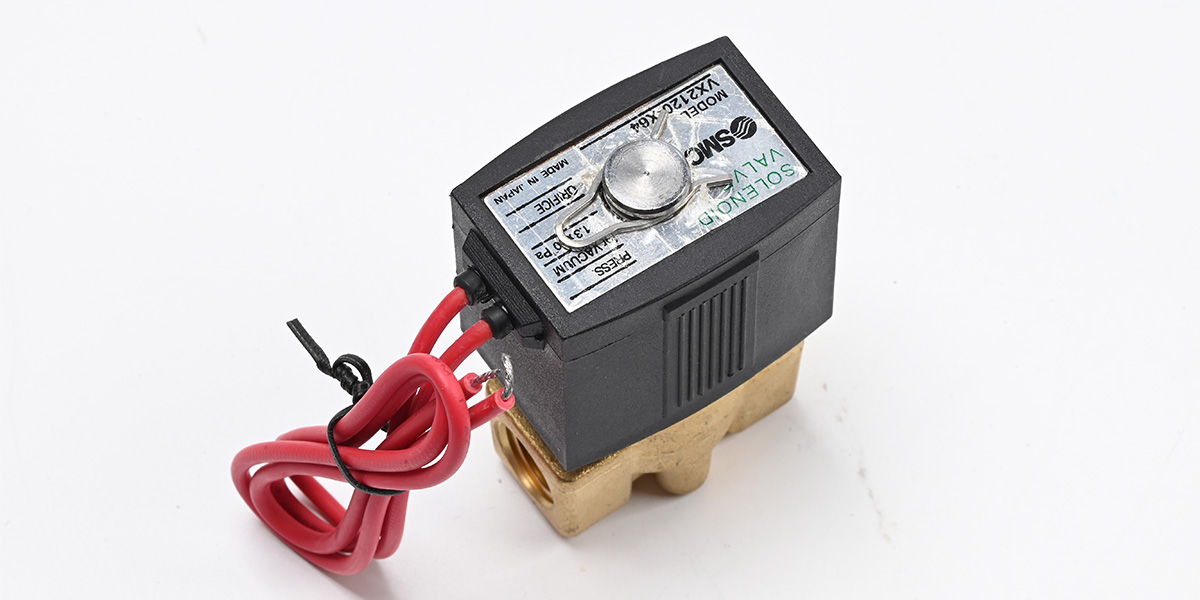

VX2120 series solenoid valve

VX2120

The fluid Solenoid valve (Solenoid valve) is an industrial device controlled by electromagnetism. It is an automatic basic component used to control fluids and belongs to the actuator, not limited to hydraulics and pneumatics.
  • Function

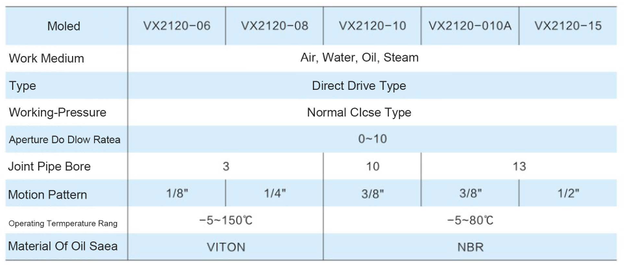

  • Parameters

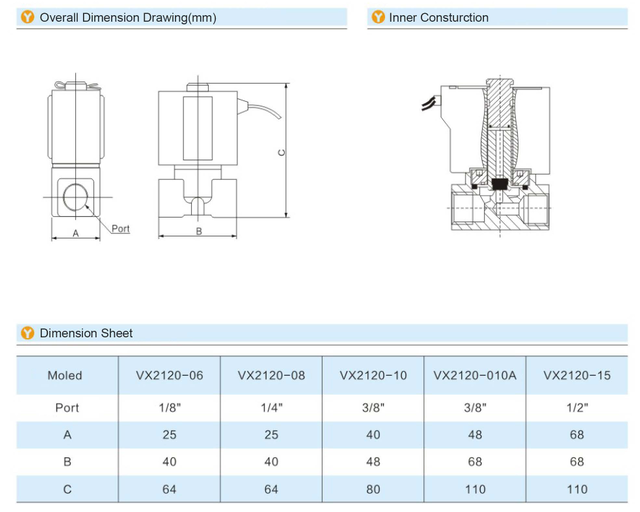

  • Size
  • Supports DC24V voltage, uses DIN type socket, with indicator light and overvoltage protection circuit to ensure stable operation ‌

    The valve body materials include aluminum (Al), resin, C37, stainless steel (SUS), etc., which can adapt to different media (such as air, water, oil, steam) and working conditions ‌

    The resin valve body is equipped with quick-change couplings, which facilitate installation and maintenance and reduce downtime ‌
