JPC series threaded straight-through

PC BLACK & WHITE

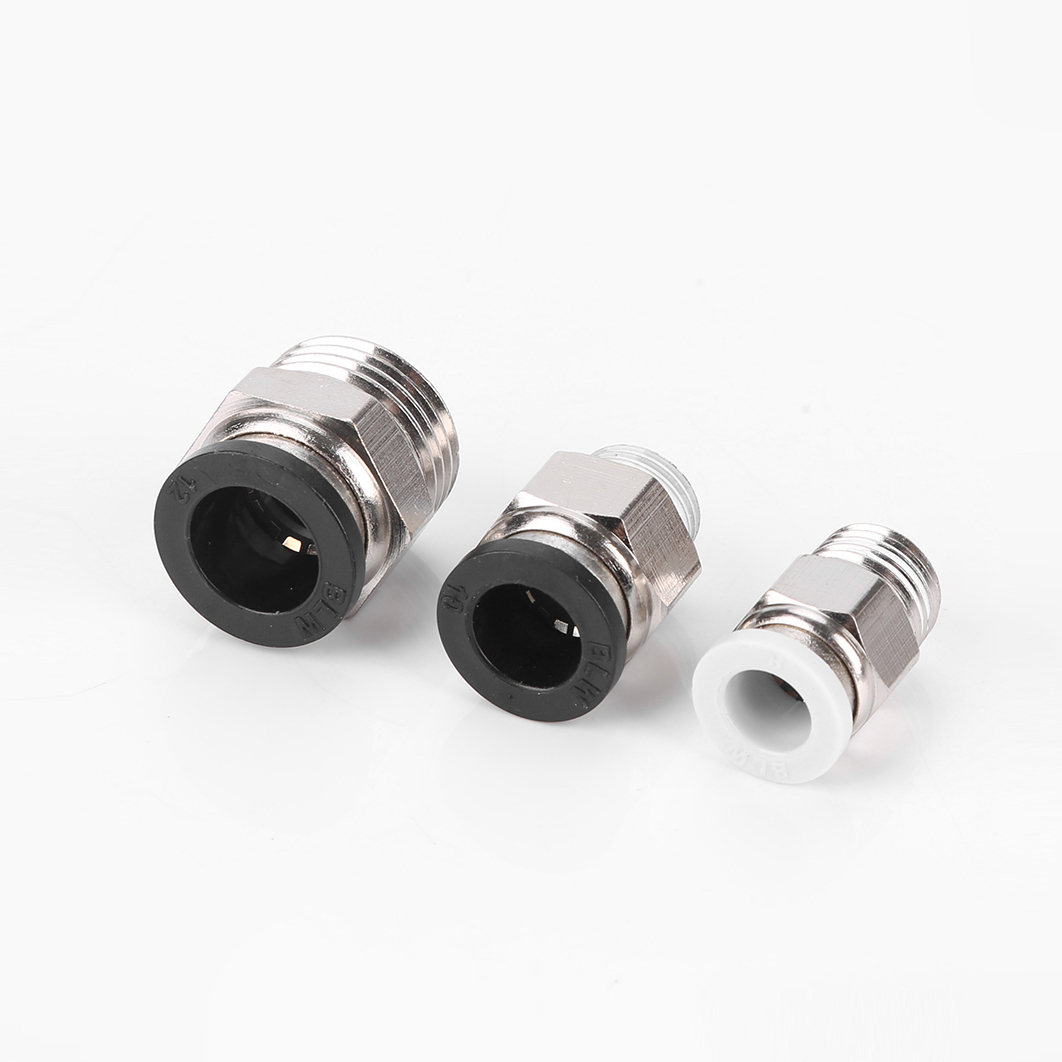

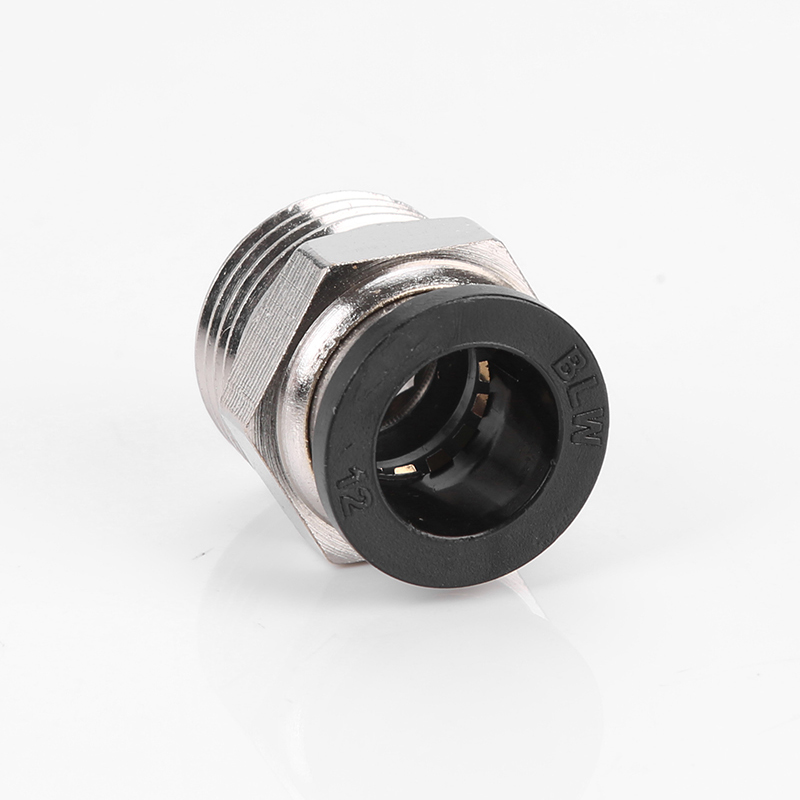

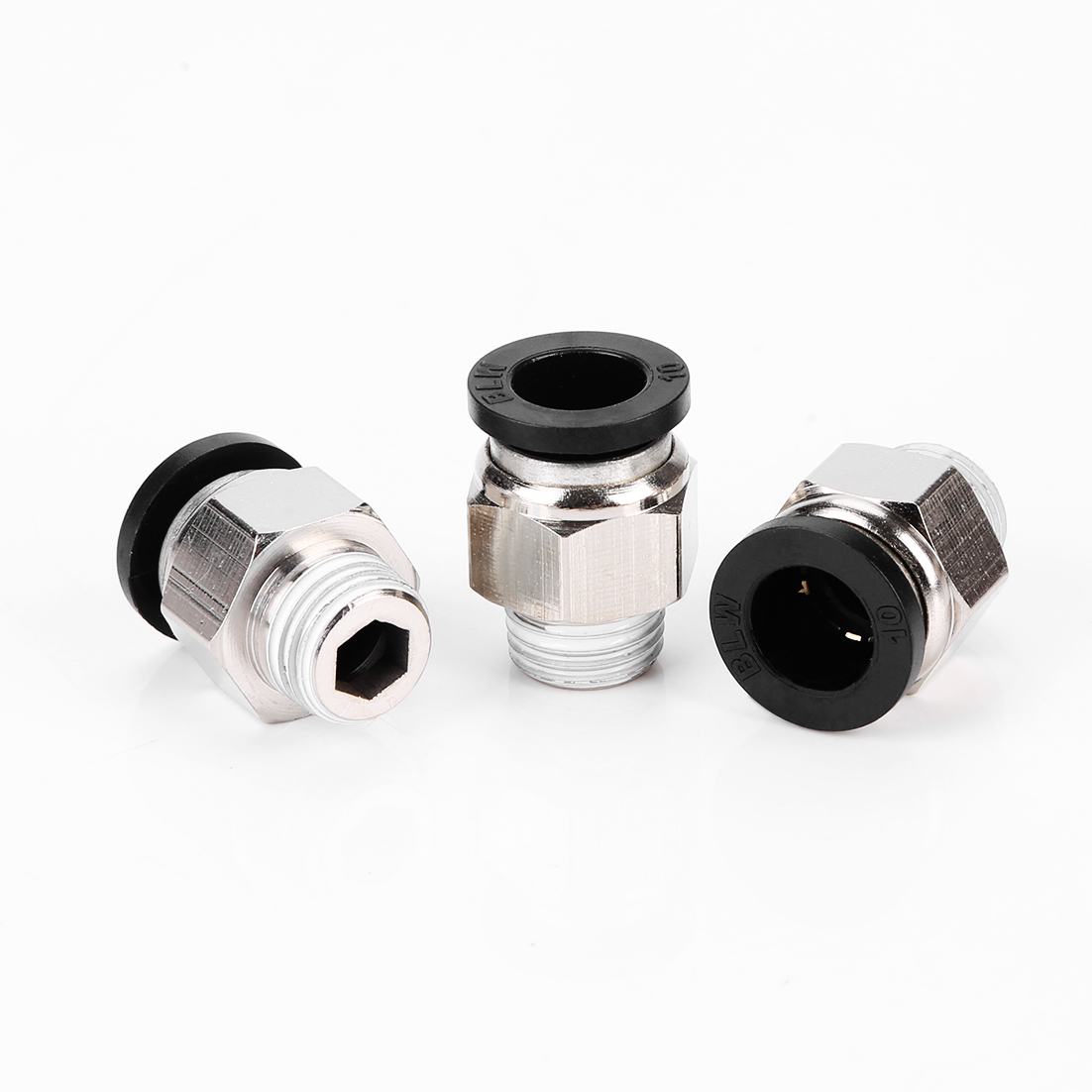

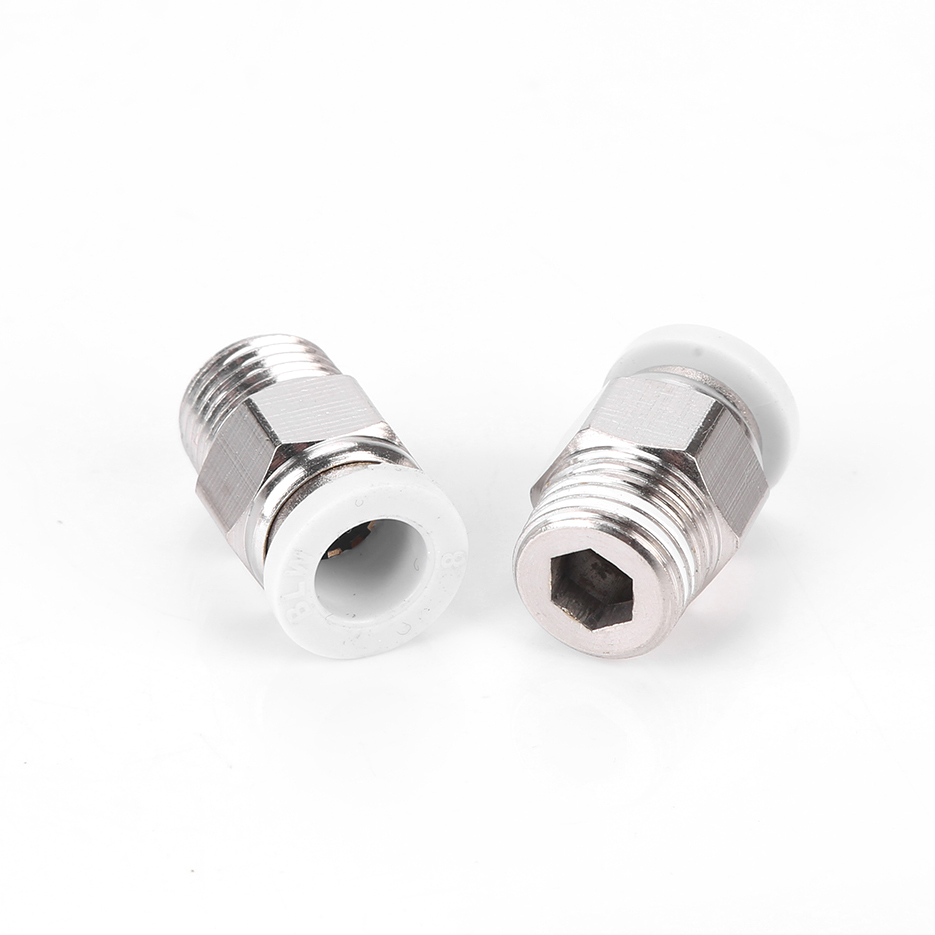

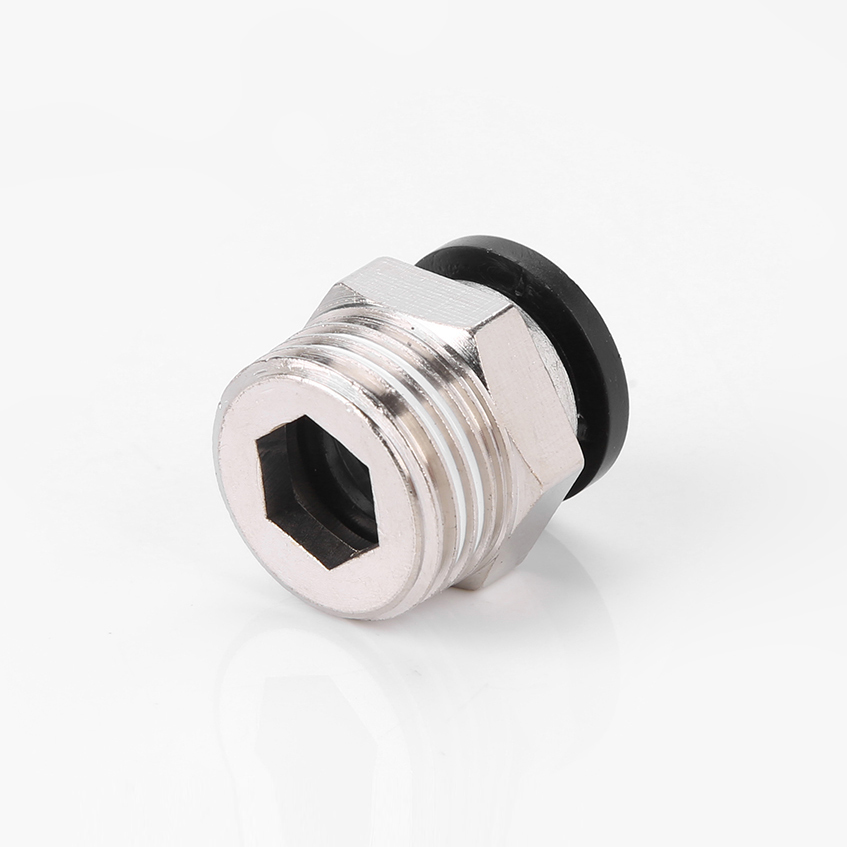

The PC external thread joint is a pneumatic joint made of nickel-plated brass, mainly used for quick connection of pipelines, featuring pressure resistance and temperature resistance. In its model, "PC" stands for quick plug and pull design, and the external thread structure can be directly connected to threaded pipe fittings or valves.
  • Function
  • Parameters

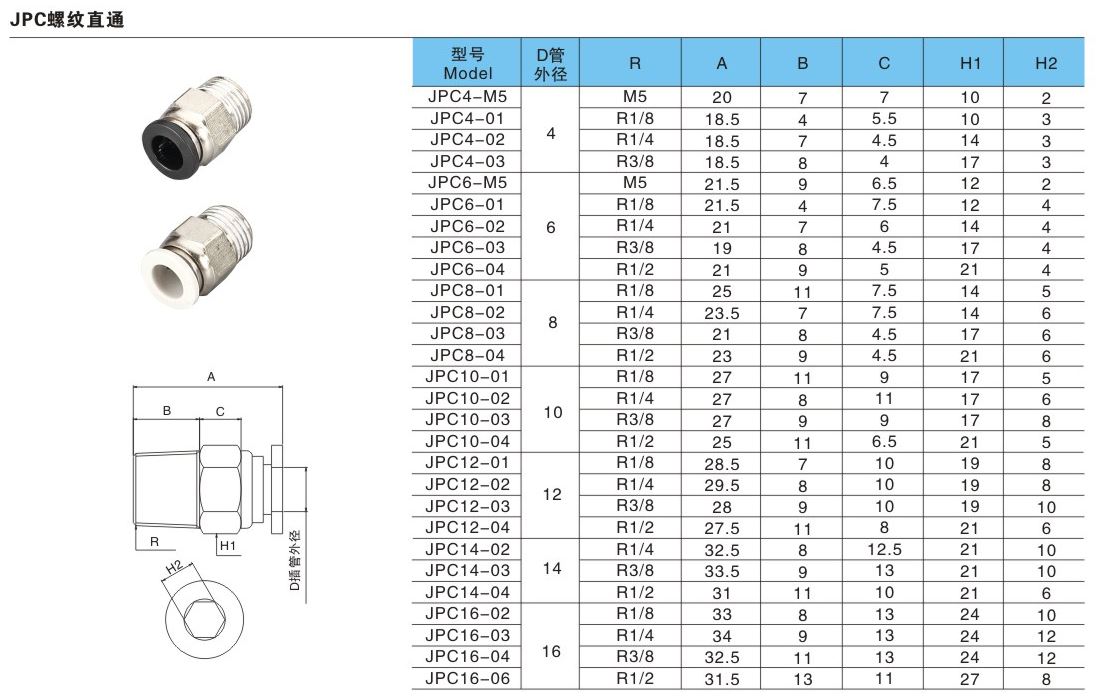

  • Size
  • PC external thread joint is a pneumatic joint made of brass nickel plated material, mainly used for quick connection of pipelines, with pressure and temperature resistance characteristics. The "PC" in its model represents a quick plug design, and the external thread structure can be directly connected to threaded fittings or valves.

    Name: PC External thread

    Model: PC

    Temperature resistance: 0-60℃

    Pressure resistance: 0-1MPa
